Gas Ventilation
gas venting Solution

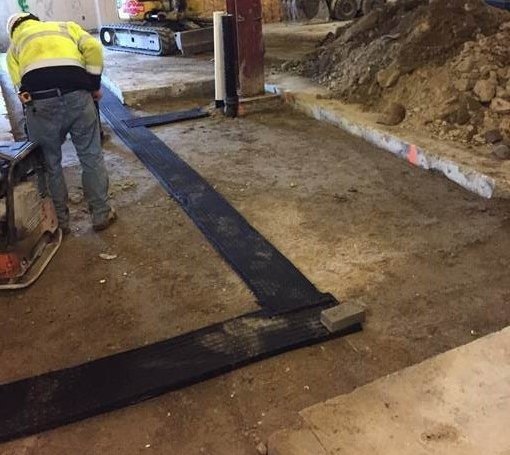

SITEDRAIN Strip 9412 is a prefabricated gas collection and ventilation system designed to create a low-profile air space that collects and provides an outlet for radon, methane or other gas vapors and liquid water. The gas mitigation system is designed to be used where limited space is available, providing a cost effective alternative to the traditional pipe systems. SITEDRAIN Strip 9412 features a polymeric dimpled core encased by a nonwoven geotextile fabric. The core provides the air space to collect the vapor while the filter fabric prevents any substrate materials from clogging the space. SITEDRAIN Strip 9412 is also resistant to degradation by these vapors at naturally occurring levels.
Benefits of using SITEDRAIN Strip 9412 for gas ventilation projects:
Low-profile design eliminates the need for extensive trenching
Collection system provides more open area per foot compared to perforated pipe to allow for more efficient ventilation
When installed below the barrier system, SITEDRAIN Strip 9412 drastically reduces vapor accumulation under structure
SITEDRAIN Strip 9412 can work as an active or passive venting system
